HomeCutter-plotterCutter-plottere GRAPHTECFCX4000 flatbed - noua serie perfecta pentru mostre, cutii de prezentare, etichete

Solutii eficiente pentru mostre de etichete, ambalaje si POP.

FCx4000 - NOU - cutter-plottere plane pentru packaging/POP, print&cut sau semnalistica, carton, plastic

Cele mai avansate cutter-plottere plane (flatbed cutting-plotters)





Seria FCX4000  de cutter-plottere plane de la Graphtec reprezinta o noua generatie de masini moderne.

Disponibile in doua dimensiuni adaptate nevoilor dvs. astepta sa le descoperiti noile facilitati. Urmati-ne!



COMPASS, numarul 1 in cutter-plottere in Romania va ofera o alternativa unica in industria de POP, print&cut si packaging design, in termeni de competitivitate, performante si pret.



FCX4000 - cutter-plottere plane gandite pentru print&cut productie digitala (pentru prototipuri sau productie mica pe materiale rigide)



Cutter-plotterele plane sunt unelte dedicate multor aplicatii si procese industrial. O viteza uluitoare de 750 mm/secunda va ofera performante deasupra oricarui alt model desktop de pe piata si totul la o productivitate de invidiat. Perfect pentru:

- serigrafie

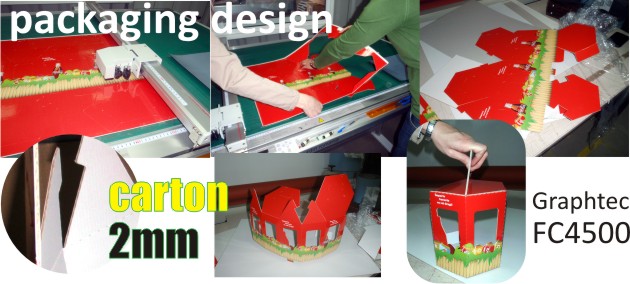

ambalaje/cutiilor de prezentare sau de serie mica, la comanda

- sabloanelor CAD pentru creatorii sau producatorii de incaltaminte

- autocolante, semnalistica

- monumente

- bunuri industriale.

In plus, economiseste resturile de materiale din atelierele de signing.



Doua noi modele sunt disponibile din noua serie de cutter-plottere plane (flatbed cutter-plotters) de la Graphtec pentru 2 dimensiuni standard:

   -   660 x 488 mm - FCX4000-50
   -   976 x 660 mm - FCX4000-60



   - Toate modele au o forta de taiere de 600g ce permite taierea unor materiale dintre cele mai groase si rezistente.
   - Functia de citire automata a marcajelor pentru decuparea pe contur (Auto Registration Mark Sensor "Arms") este standard de 15 ani.
   - Stand optional pentru modelul de cutter-plotter plan FCX4000-60 .
   - Software inclus.



Seria Graphtec FCX4000 de cuttere-plottere plane

Seria Graphtec FCX4000 de cutter-plottere plane reprezinta o solutie accesibila pentru volume medii de print digital la comanda si utilizeaza tehnologie electrostatica pentru a fixa ferm media pe masa de lucru.

FCX4000 ofera usurinta in exploatare si o operare intuitiva cu un nou panou de cotrol cu un ecran LCD de 3.7” LCD si functionalitate USB / cod de bare.

2 different table size are available. The effective cutting area of the 50ES model is expanded for supporting 2 sheets of A3+ size, and the 60ES model supports 4 sheets of A3+ size. The FCX4000 is more suitable in the use of post-processing of Print On Demand jobs than its bigger brother, the FCX2000.

Graphtec FCX4000 Series Flat Bed Cutting Plotter: Main Functions

  • Creasing
  • Scoring
  • Perforation Cutting
  • Half Cutting
  • Die Cutting

Graphtec FCX4000 Series Flat Bed Cutting Plotter: Design Features

Stronger Media Hold Down

Holds media by electrostatic that is generated by electrodes arranged inside the panel. This method is suitable for cutting light weight materials.

Graphtec-America-Cutting-Plotter-FCX2000 Vocumm 30 to 20 mm jpg.jpg

Dual Tool Holder

The FCX4000 series has 2 tool holder in the carriage. Using 2 different tools in the same job increases work efficiency.

Graphtec-FCX4000-Tools Suitable for Applications.jpg

3.7″ LCD Control Panel

Settings can be easily set using the large 3.7-inch LCD (240 x 128 dots).

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Tool Holders and Cutting Creasing Tools

Loupe For Cutting Blade

The loupe is a standard accessory used to easily adjust extruded blade length with the PHP33/PHP35 blade holders.



USB Offline Operation

Offline operation supported by use of USB flash memory:
Cut and plot data is created with Cutting Master 4 or Graphtec Pro Studio. That saved data may be transferred to a USB flash memory and the cut plot data file can be selected from the USB on the FCX4000 using its menu operations. This simplified work-flow enables users to operate without being connected to the computer.

Data management using bar-code function with USB flash memory:
When performing contour cutting, also known as “Print & Cut”, the cutting data is automatically selected from the prepared USB flash memory. The FCX4000 scans the bar code printed on the media then automatically performs the contour cutting job. This emerging method helps to prevent operator error of using incorrect data – thus improving workflow efficiency.

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Operate Cutting Without Connection to PC Easy to Use for Designer and Operator to operate contour cutting through simple barcode operation


Graphtec FCX4000 Series Flat Bed Cutting Plotter: ARMS 6.0 – Advanced Registration Mark Sensing System

The  Graphtec FCX4000 Series Flat Bed Cutting Plotter uses enhanced ARMS (Advanced Registration Mark Sensing system) for improved productivity of P&C applications.

  • Equipped the ARMS (Advanced Registration Mark Sensing system)6.0.
  • Easy and accurate cutting of pre-printed images using the cutting master 4 and etc.
  • Enables higher productivity of POP, stickers, and prototype cartons.

ARMS Copy Function

Design personalizat.

Designul cutter-plotterului plan (flatbed cutter-plotter) permite realizarea de operatiuni care nu pot fi realizate cu un cutter-plotter cu taiere din rola.





After data is sent the first time, it can be copied multiple times without a PC. In the FCX4000 Series, the first four marks are scanned on the first sheet, and only the first mark in subsequent sheets. This improves productivity by shortening scan detection time.

The FXC4000 features Graphtec’s newest Advanced Registration Mark Sensing System Version 6.0 for even more improved contour cutting of your pre-printed graphics for package prototyping, reflective sheeting and many other professional rigid applications – using Cutting Master 4, Graphtec Pro Studio, and including most industry standard cutting software.

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Series ARMS Copy Function

Image 1: Enhanced ARMS (Advanced Registration Mark Sensing system) Version 6.0 for Improved Productivity of Contour Cutting Applications

Image 2: Scanning matrix print copies

Image 3: Scanning cutting multiple (identical) copies, when only one sheet is able to fit the plotter table.



Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Scanning Cutting Multiple Identical Copies, when only one sheet is able to fit the plotter table

Reverse Side Cutting and Creasing Method

Cutting and creasing of pre-printed packaging graphics is possible on the reverse (non-printed) side of the sheet. This method of reverse side cutting and creasing prevents damage and marking of the printed side. This option is currently available using Cutting Master 4 or Graphtec Pro Studio software with the FCX4000.

Flatbed Cutter, Table Top Cutter, Cardboard Cutter, Package Thick Paper Cutter, Sublimation Cutting Plotter, Vinyl Cutter, Vinyl Cutting Machine, Die Cutting Machine, Graphtec Vinyl Cutter Graphtec FCX2000 Reverse Side Cutting and Creasing Method

Expanded Contour Cutting Area

This included function expands the print and cut area to include objects outside of the registration marks! Production efficiency is enhanced and media waste is reduced.

Supports Standard Crop Marks

Contour cutting pre-printed media is also possible using “standard crop marks.” This operation is available with the included Cutting Master 4 plug-in workflow.

Reversed Color Registration Marks

Registration marks are detectable when there is sufficient contrast against the mark and its background. Ultra glossy and reflective media offer challenges for accurate registration mark detection. With this reversed color output, the sufficient contrast is brought back for the ability to contour cut pre-printed ultra glossy and reflecting sheeting.


Graphtec FCX4000 Series Flat Bed Cutting Plotter: Specifications List

Item FCX4000-50ES FCX4000-60ES
Configuration Digital servo system, Flatbed

Media hold-down method Electrostatic panel
Effective cutting area W 42.87″ x D 35.31″ x H 8.03″ W 55.31″ x D 42.08″ x H 8.03″
Mountable media
(Y-axis direction)
21.10″ 27.97″
Maximum cutting speed 29.5″/s (1 to 75 cm/s in 23 steps)
Cutting pressure Tool 1: Max. 5.88 N (600 gf)
Tool 2: Max. 5.88 N (600 gf)
Cutting force settings Tool 1: in 48 steps, Tool 2: in 48 steps
Minimum character size Approx. 10 mm square (varies with character font and media)
